Rated output

2.0±10%MV/V

Zero balance

±2%F.S

Non-linearity

0.25%F.S

Hysteresis

0.25%F.S

Repeatability

0.25%F.S

Creep (30min)

0.25%F.S

Temp.effect on output

0.05%F.S./10%℃

Temp.effect on zero

0.05%F.S./10%℃

input impedance

700±30Ω

Output impedance

700±5Ω

Insulation

≥5000MΩ/100VDC

Recommended excitation

10V

Maximum excitation

15V

Compensated temp range

-10~60℃

Operation temp range

-20~80℃

Safe overload

120%F.S.

Ultimate overload

200%F.S.

Cable size

?3x1000mm

Protection class

IP65

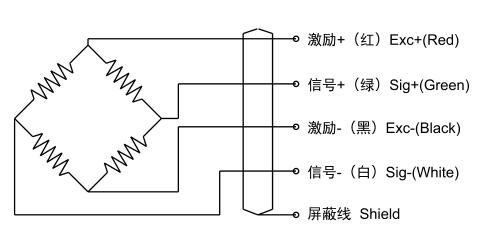

Cable color code

Input: Red[+] Black(-)

Output: Green[+] White(-)
